Wet Friction Materials

For over 25 years, leading auto OEMs have relied on AvCarb® Wet Friction Materials for long-lasting high-performance friction systems.

Woven carbon fiber fabric, infiltrated with phenolic resin matrix, and formed to highly uniform thicknesses, provides a durable friction surface suitable for even the most demanding wet friction applications. In typical wet friction systems, AvCarb materials provide a highly stable coefficient of friction, typically between 0.11-0.13 depending on geometry and transmission fluid. AvCarb Wet Friction Products are provided in a fully cured sheet form with or without adhesives. Other versions are available (e.g. partially cured prepreg). Typical applications include torque converter clutches (TCC), automated manual transmissions (AMT), dual clutch transmissions (DCT), manual transmissions (MT), wet brakes in heavy duty vehicles, spindle drives in automatic lift-gate systems.

Benefits:

Optimized density to tune performance
Thermally stable
Rapid heat dissipation from designed weave patterns
No known fluid compatibility issues

Product Formats:

Partially cured prepreg (final cure during bonding)
Fully cured, precession molded sheets
With or without adhesive
Special cases: Bonded parts and complete clutch assemblies

Applications

Torque Converter Clutches for AT’s
Cone Synchronizer Clutches for MT’s, AMT’s and DCT’s
Multi-Disc Clutches for High-Load Applications
Limited-Slip Differential Clutches
Wet Brakes for Heavy-Duty Applications
Spindle Drives for Automatic Lift-Gate Systems
Many other Specialty Wet-Clutch & Semi-Dry Applications

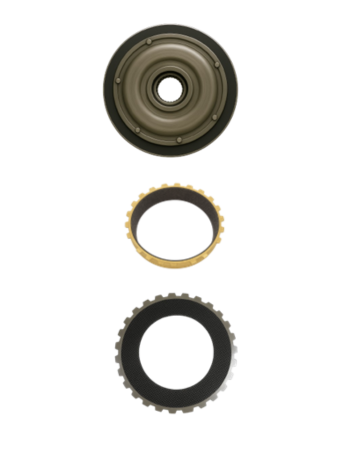

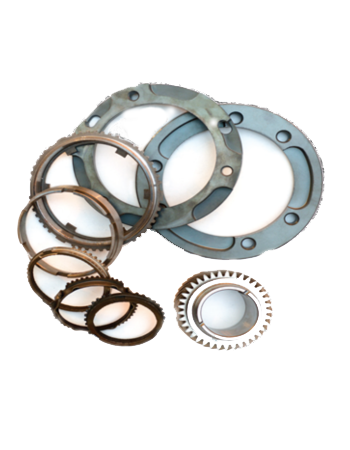

Avcarb - Transportation - Multi-Disc

Avcarb - Transportation - Disc

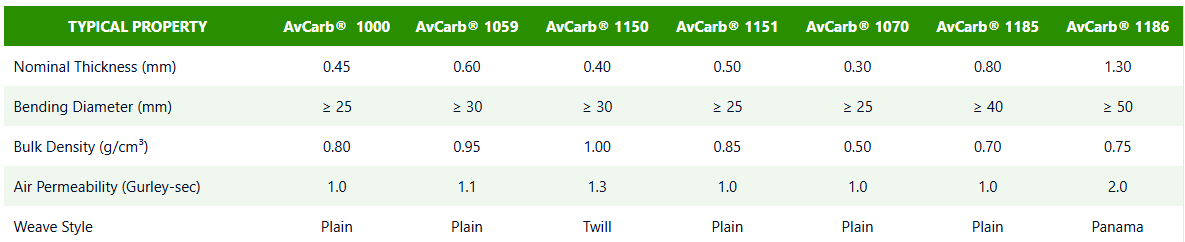

TYPICAL PROPERTY	AvCarb® 1000	AvCarb® 1059	AvCarb® 1150	AvCarb® 1151	AvCarb® 1070	AvCarb® 1185	AvCarb® 1186
Nominal Thickness (mm)	0.45	0.60	0.40	0.50	0.30	0.80	1.30
Bending Diameter (mm)	≥ 25	≥ 30	≥ 30	≥ 25	≥ 25	≥ 40	≥ 50
Bulk Density (g/cm³)	0.80	0.95	1.00	0.85	0.50	0.70	0.75
Air Permeability (Gurley-sec)	1.0	1.1	1.3	1.0	1.0	1.0	2.0
Weave Style	Plain	Plain	Twill	Plain	Plain	Plain	Panama
Datasheet

AvCarb - Table - Wet Friction

-                                        Datasheet
+                                        Download
-                                        AvCarb®  1000
-                                        AvCarb® 1059
-                                        AvCarb® 1150
-                                        AvCarb® 1151
-                                        AvCarb® 1070
-                                        AvCarb® 1185
-                                        AvCarb® 1186

wet friction table

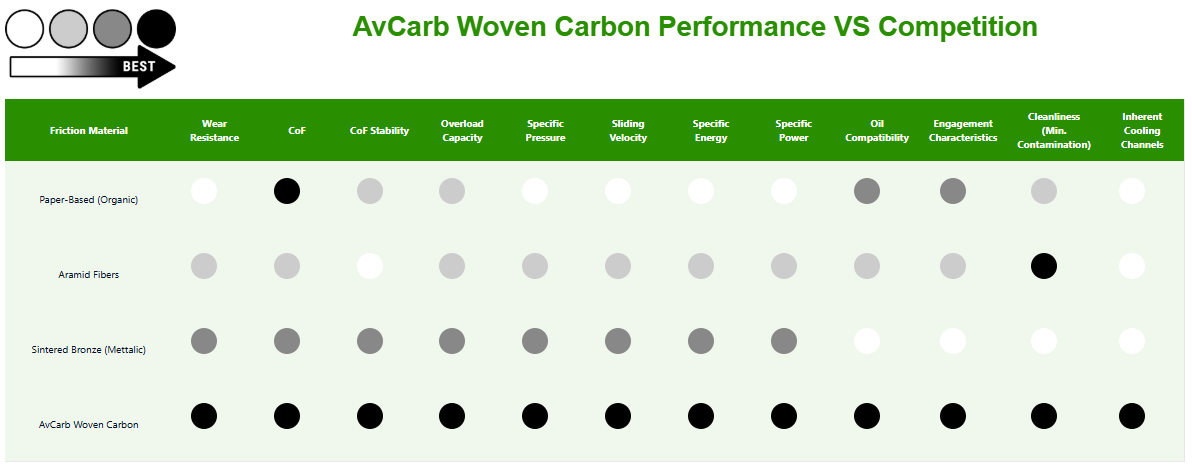

AvCarb Woven Carbon Performance VS Competition

-                                        Friction Material
+                                        Inherent Cooling Channels
-                                        Paper-Based (Organic)
-                                        Aramid Fibers
-                                        Sintered Bronze (Mettalic)
-                                        AvCarb Woven Carbon

AvCarb Woven Carbon Performance VS Competition

Plain

plain-friction

Basket or Panama

basket

Twill

twill
